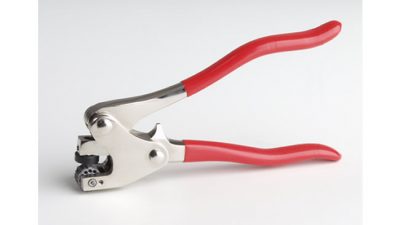

Manual Marking-Embossing Plier
These Manual Marking – Embossing Pliers are manufactured according to your individual requirements.

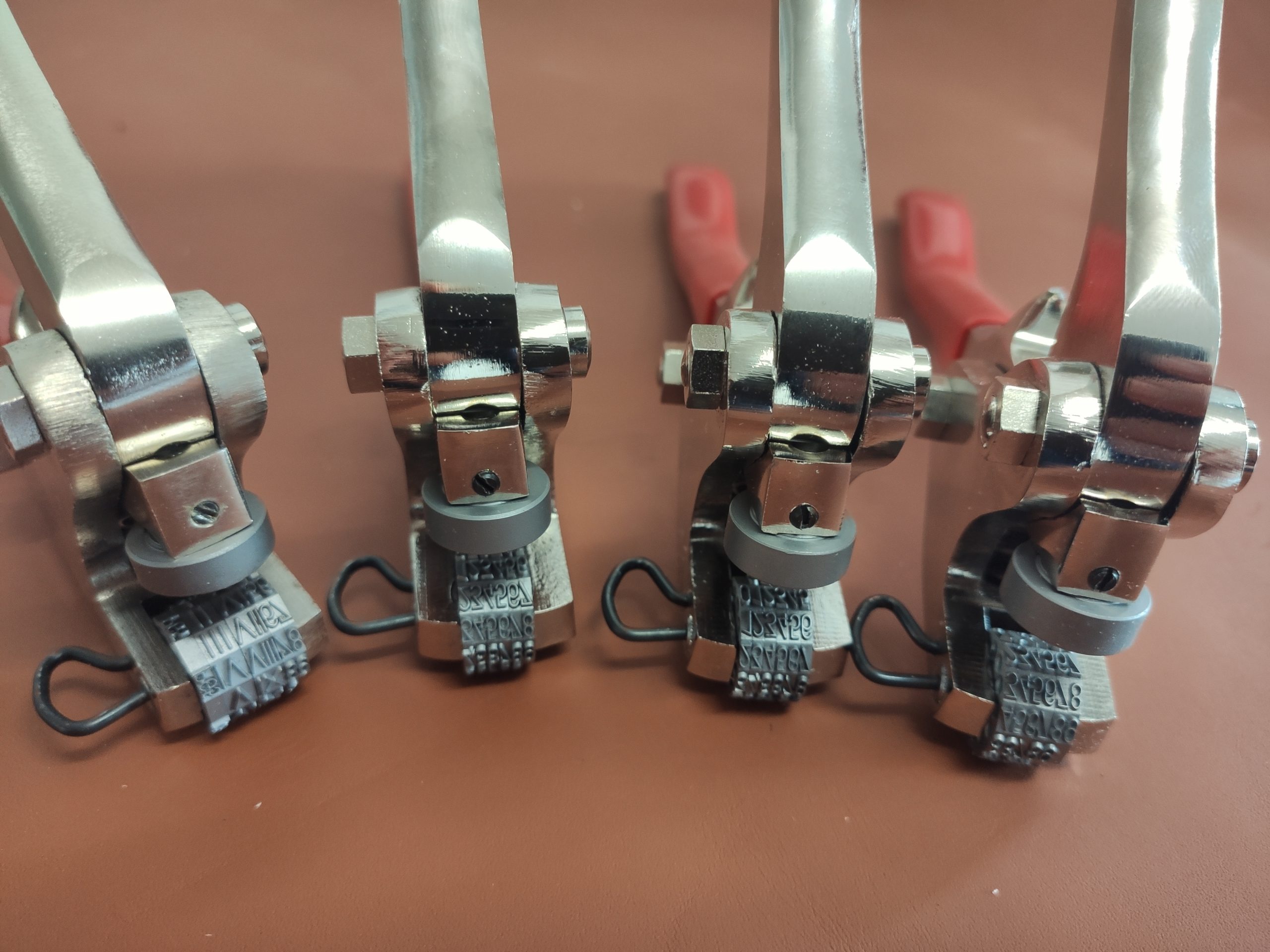

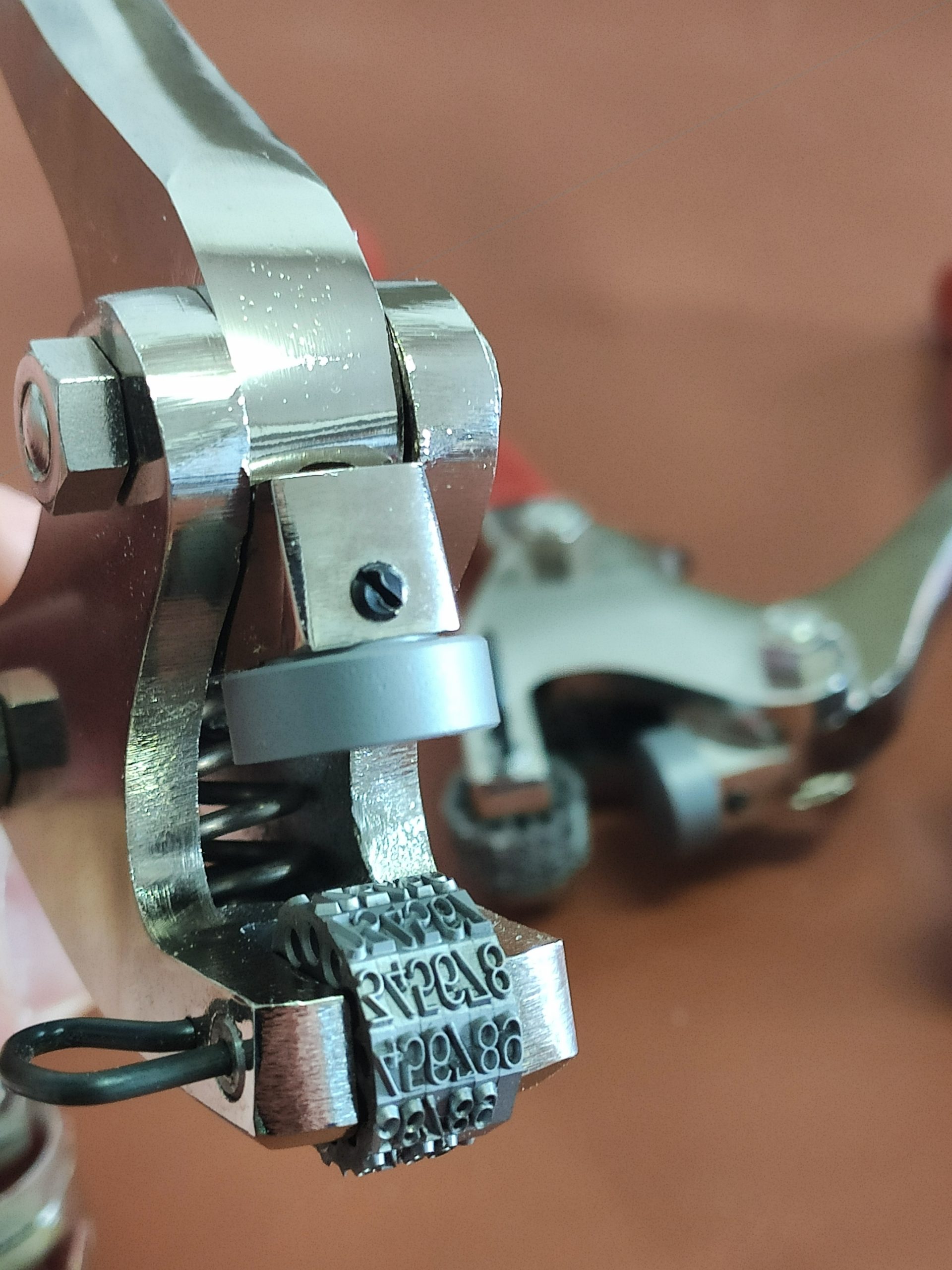

They can be equipped with up to six wheels, each standard wheel comprising twelve characters.
Configure your custom Manual Marking – Embossing Pliers using the options below:
Select up to six wheels, bearing in mind that the maximum possible width is 13.5 mm.
Each standard wheel contains twelve characters and the manual marking pliers can be equipped with up to six wheels.
1. Wheel with Arabic numerals (0, 1, 2, 3, 4, 5, 6, 7, 8, 9) (wheel width: 1.6 mm).
2. Wheel with Roman numerals (I, II, III, IV, V, VI, VII, VIII, IX, X, XI, XII) (wheel width: 4.0 mm).
3. Wheel with month initials (January–December) (wheel width: 4.0 mm).
4. Wheel with capital letters (A, B, C, etc., with a maximum of 12 freely selectable letters) (wheel width: 2.2 mm).
5. Wheel with a maximum of three horizontal characters (font height: 2 mm) (wheel width: 2.2 mm).
6. Block wheel with a maximum of three characters (wheel width: 6.0 mm).
Other options:
– Spacer instead of wheel (1.6 mm wide)
– Spacer instead of wheel (4.0 mm wide)
– Special engraving (e.g. logo, symbols)
The font height is approximately 3 mm.
Example for a maximum width of 13.5 mm:
Wheel 1: Arabic numerals (wheel width: 1.6 mm)
Wheel 2: Arabic numerals (wheel width: 1.6 mm)
Wheel 3: Capital letters (wheel width: 2.2 mm)
Wheel 4: Roman numerals (wheel width: 4.0 mm)
Calculation: 1.6 mm + 1.6 mm + 2.2 mm + 4.0 mm = 9.4 mm
